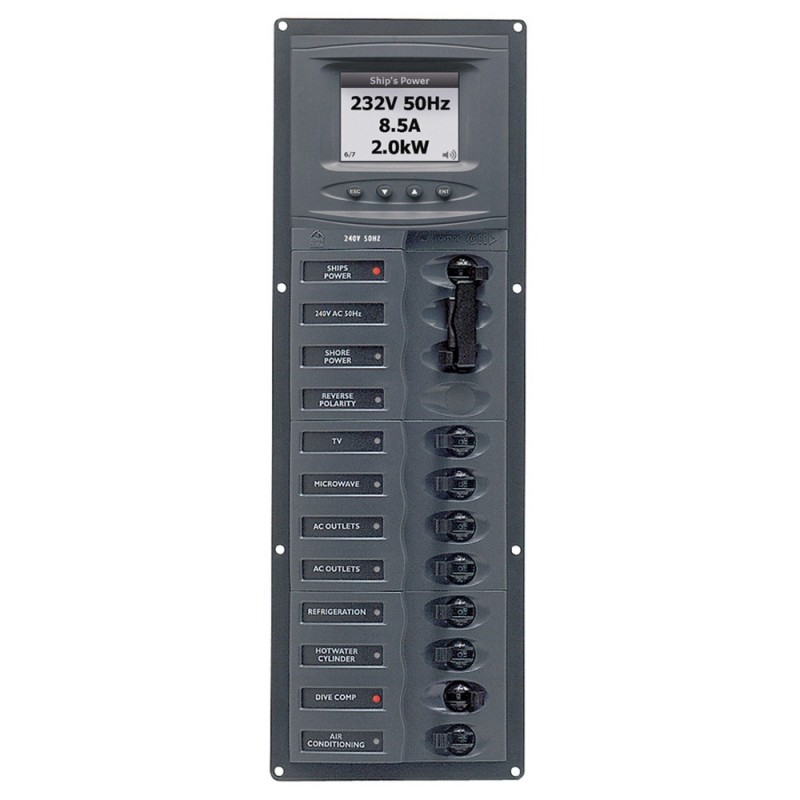

BEP AC Circuit Breaker Panel w/Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical View larger

BEP AC Circuit Breaker Panel w/Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical

BEP Marine

59028

59028

New product

BEP AC Circuit Breaker Panel w/Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical

More details

$1,157.81

Out of stock

More info

AC Circuit Breaker Panel with Digital Meters, 8SP 2DP AC230V ACSM Stainless Steel Vertical

Features
  • Supplied with tranducer
  • Reverse polarity indicator
  • Double pole mains input CBs with side lockout
  • Digital meter shows volts, amps and frequency
  • LED wired to indicate live panel with mains breaker either on or off
  • AC source selector ensures no cross over between AC inputs (ship or
    shore power)


Specifications
  • Total Positions: 8 Loads + 2 Inputs
  • Circuit Breakers: 1x 5A, 3x 10A, 3x 15A, 1x 20A + 1x 20A, 1x 30A
  • Nominal Voltage: 230V AC
  • Maximum Amperage: 30A
  • Dimensions: 15" X 5" X 2.5"
  • Neg Bus: IS-6MM-2
