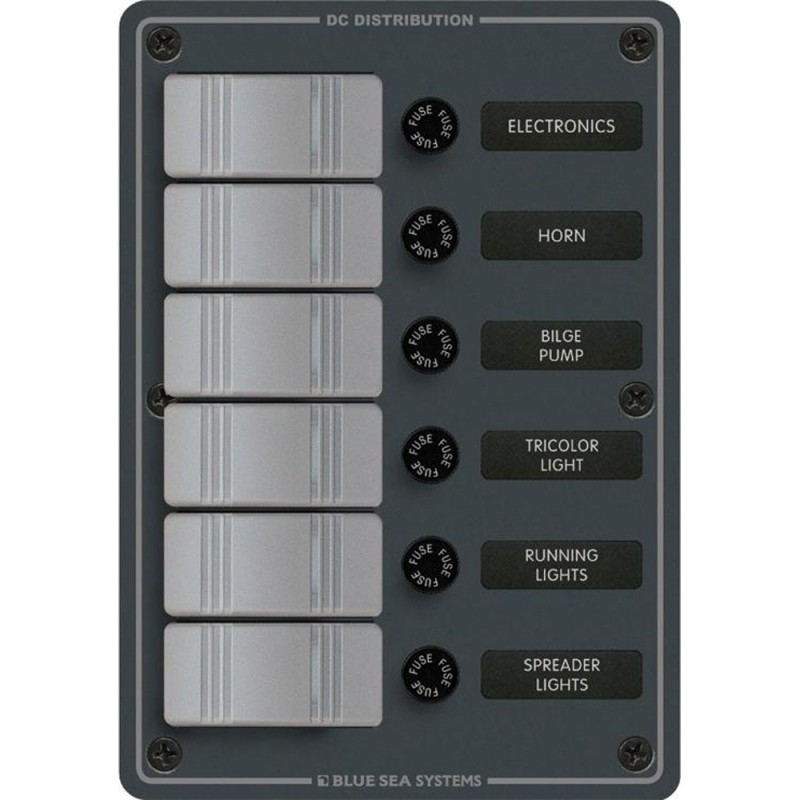

Blue Sea 8053 Slate Grey - 6 Position - Vertical View larger

Blue Sea 8053 Slate Grey - 6 Position - Vertical

Blue Sea Systems

19046

19046

New product

Blue Sea 8053 Slate Grey - 6 Position - Vertical

More details

$167.85

4 Items

In Stock

More info

8053 Slate Grey - 6 Position - Vertical

Features:

  • Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
  • Designed for flybridge and open cockpit applications
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switches
  • Watertight mounting gasket included
  • Countersunk mounting holes throughout
  • Two-part polyurethane slate gray finish
  • Industry standard height and width
  • Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
  • Completely wired and ready to install

Specifications:

  • Weatherproof: Water Resistant
  • Positions: 6
  • Nominal Voltage: 12v / 24v DC
  • Panel Cumulative Rating: 45A
  • Switch Rating: 20A @ 12v DC / 15A @ 24v DC
  • Height: 7.5"
  • Width: 5.25"
  • Depth: 3"

Included:

  • (6) 5021 Panel Mount AGC/MDL Fuse Holder
  • (1) 8030 Basic DC Panel Label Set - 30 Labels
  • (6) 8230 Contura Switch SPST Gray - OFF-ON

*NOTE: Waterproof panel labels are not backlit
