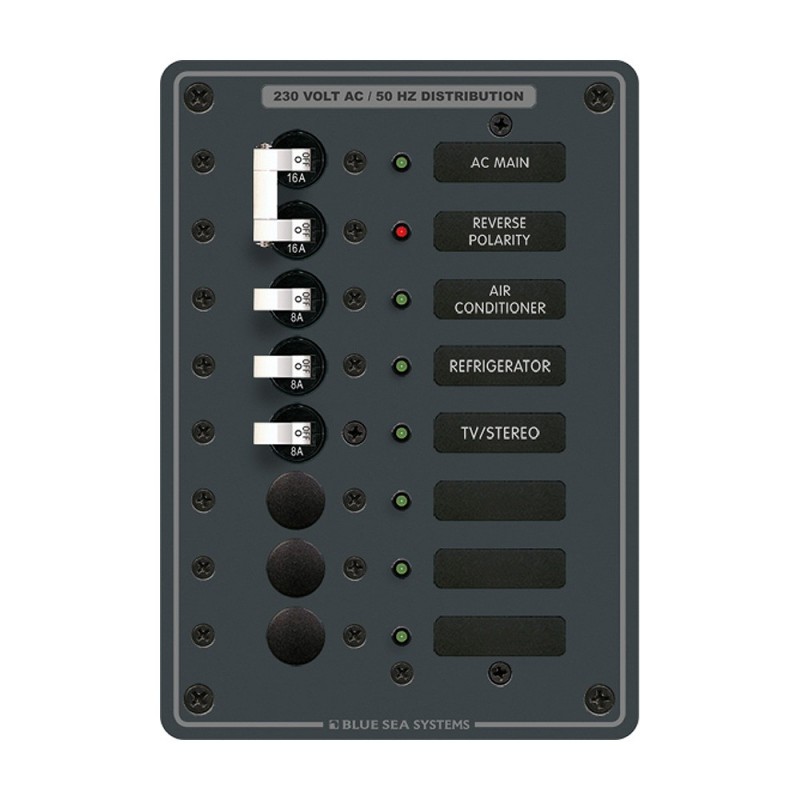

Blue Sea 8127 AC Main + 6 Positions View larger

Blue Sea 8127 AC Main + 6 Positions

Blue Sea Systems

20701

20701

New product

Blue Sea 8127 AC Main + 6 Positions

More details

$262.60

Out of stock

More info

230V AC Main + 6 Positions

PN: 8127
White Switches


  • (1) 16A Double Pole Circuit Breaker Installed

  • (3) 8A Single Pole Circuit Breaker Installed


    Features:
    • 230V
    • Red reverse polarity indicating LED
    • All hot, neutral and safety ground buses installed, fully pre-wired
    • All circuit label positions are backlit on standard panels - No kit
      required
    • "ON" indicating LEDs installed in all circuit positions
    • Maximum panel amperage - 50 Amperes
    • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion
      resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8" aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Labels
    • Over 500 individual Labels available

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
