Blue Sea 8174 Main + 8 Positions View larger

Blue Sea 8174 Main + 8 Positions

Blue Sea Systems

20716

20716

New product

Blue Sea 8174 Main + 8 Positions

More details

$531.41

Out of stock

More info

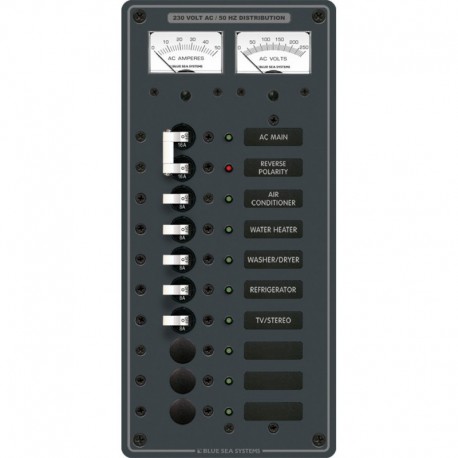

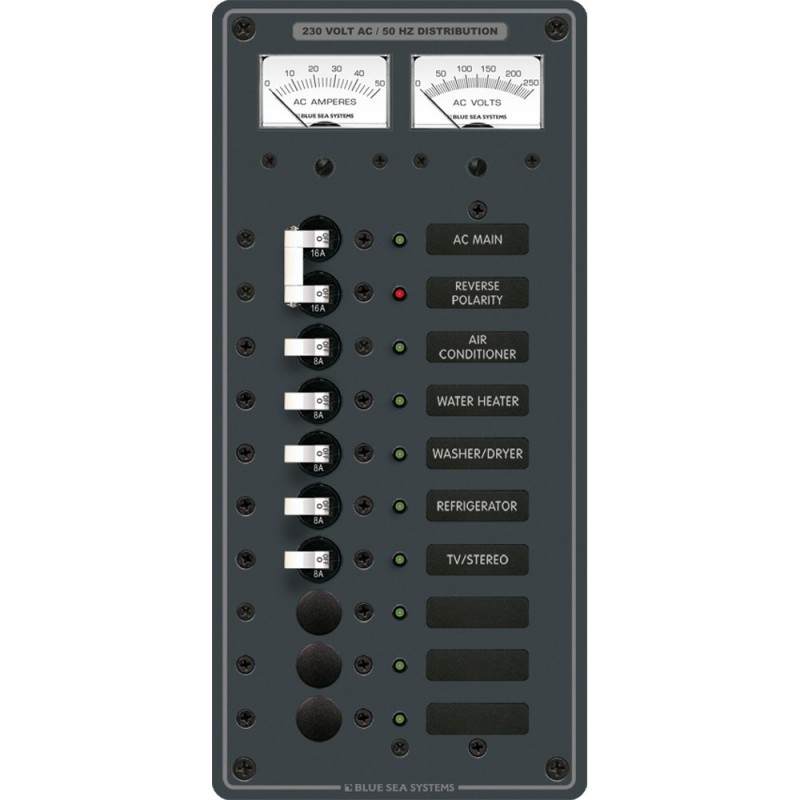

AC Main + 8 Positions (European)

White Switches

  • (1) 16A Double Pole Circuit Breaker
  • (5) 8A Single Pole Circuit Breakers
  • (1) 8246 AC Analog Micro Ammeter
  • (1) 8245 AC Analog Micro Voltmeter


  • Features:
    • Red reverse polarity indicating LED
    • All hot, neutral and safety ground buses installed, fully pre-wired
    • All circuit label positions are backlit on standard panels - No kit required
    • "ON" indicating LEDs installed in all circuit positions
    • Maximum panel amperage - 50 Amperes
    • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8" aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Labels
    • Over 500 individual Labels available
