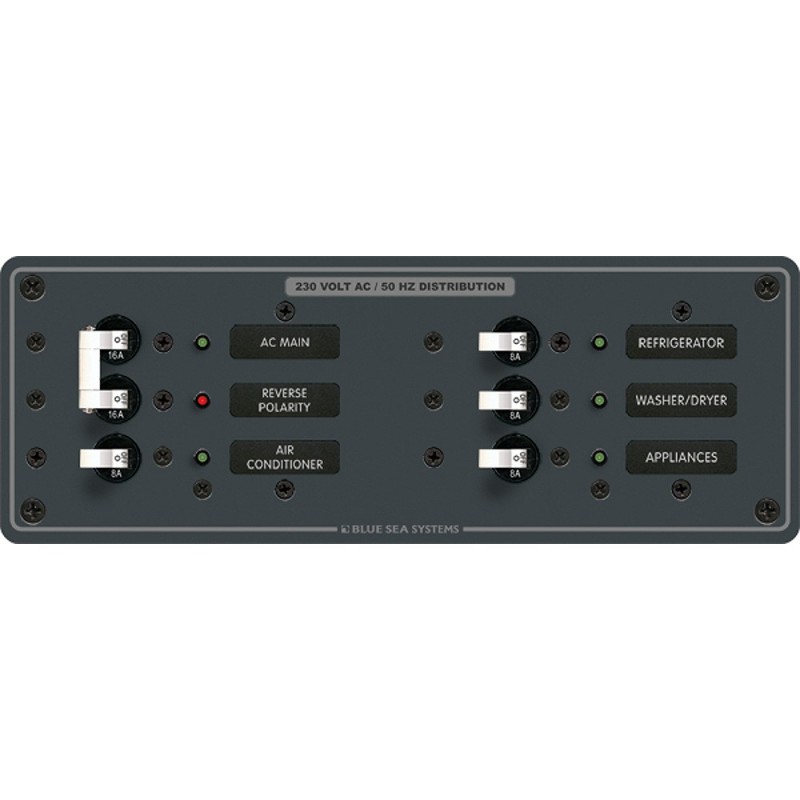

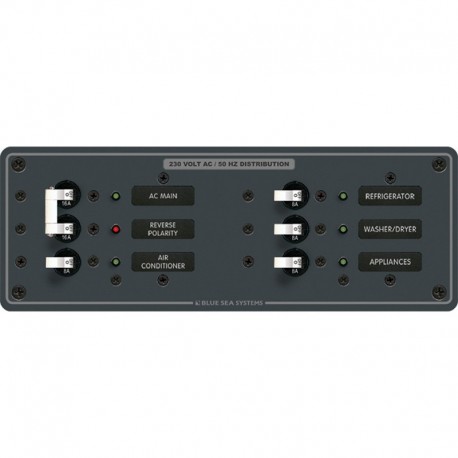

Blue Sea 8199 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 4 Position View larger

Blue Sea 8199 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 4 Position

Blue Sea Systems

20723

20723

New product

Blue Sea 8199 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 4 Position

More details

$303.37

This product is no longer in stock

More info

230V AC Main + Branch A-Series Toggle Circuit Breaker Panel

PN: 8199
White Switches


  • (1) 16A Double Pole Circuit Breaker Installed

  • (4) 8A Single Pole Circuit Breakers Installed



  • Features:
    • Red reverse polarity indicating LED
    • All hot, neutral and safety ground buses installed, fully pre-wired
    • All circuit label positions are backlit on standard panels - No kit required
    • "ON" indicating LEDs installed in all circuit positions
    • Maximum panel amperage - 50 Amperes
    • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8" aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Labels
    • Over 500 individual Labels available
