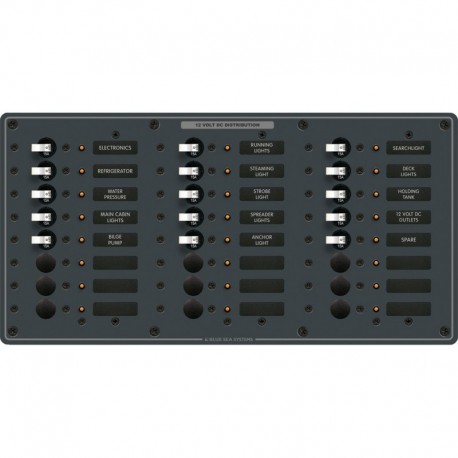

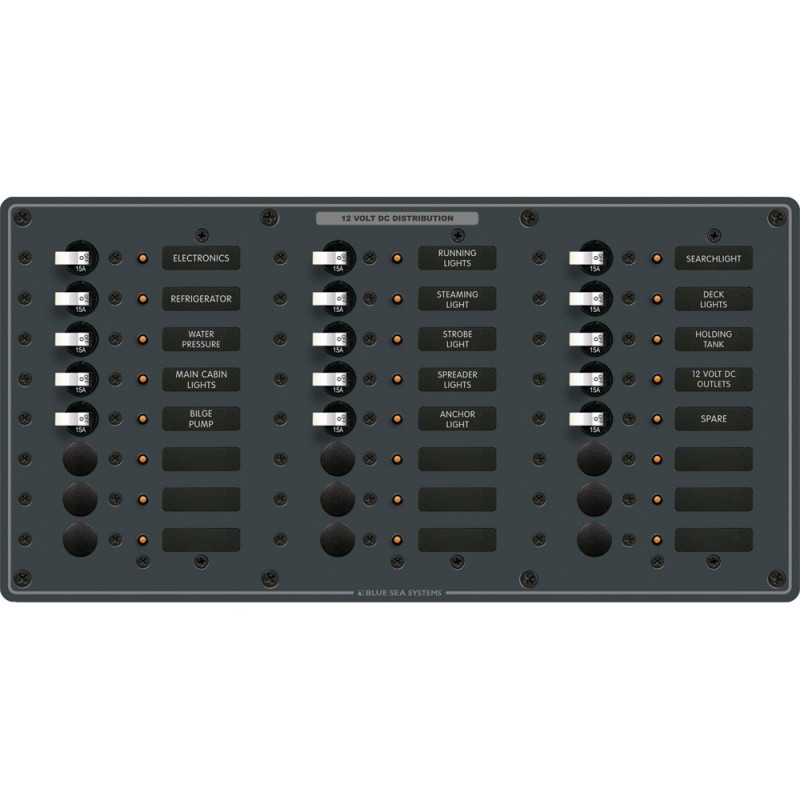

Blue Sea 8264 Traditional Metal DC Panel - 24 Positions View larger

Blue Sea 8264 Traditional Metal DC Panel - 24 Positions

Blue Sea Systems

20770

20770

New product

Blue Sea 8264 Traditional Metal DC Panel - 24 Positions

More details

$781.40

Out of stock

More info

8264 Traditional Metal DC Panel - 24 Positions

Features:
  • All positive, negative and grounding buses installed, fully pre-wired
  • Panels with meters include toggle switch for mounting up to 3 battery banks
  • All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions


Specifications:
  • Positions: 24
  • Nominal Voltage: 12 VDC/24 VDC
  • Maximum Amperage: 100A per bus
  • Height: 7.50" (190.5 mm)
  • Width: 14.75" (374.65 mm)
  • Weight: 7.45lb. (3.38 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
