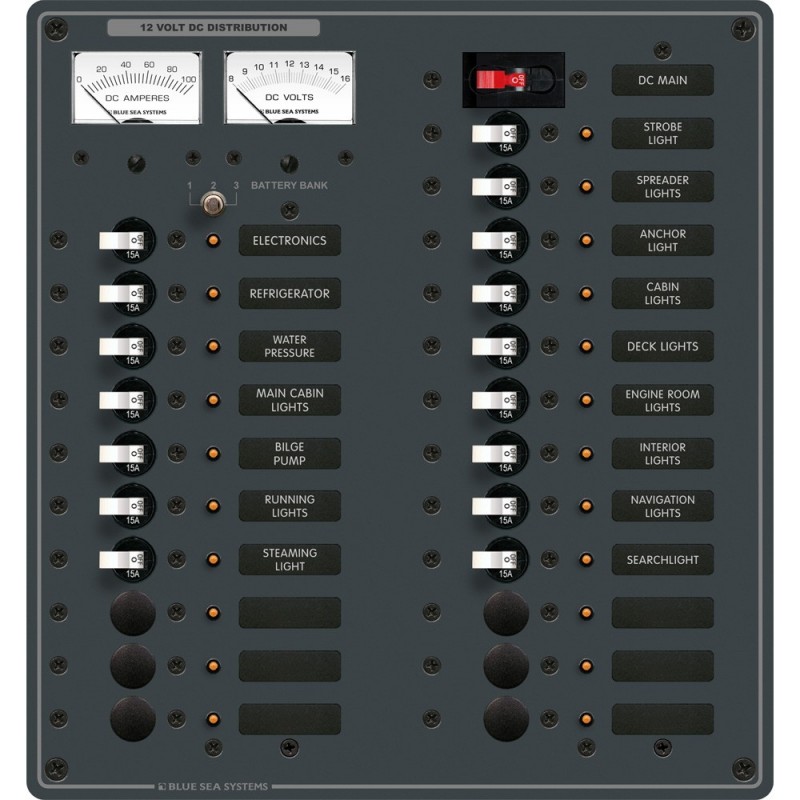

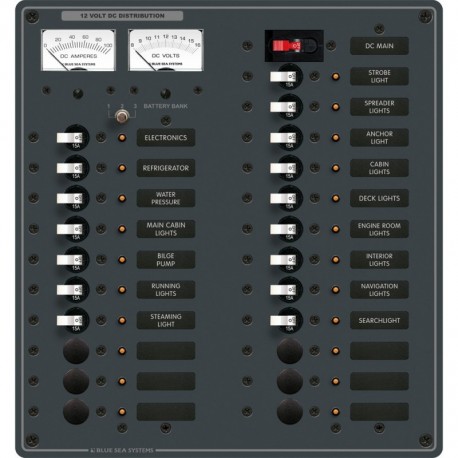

Blue Sea 8380 DC Main + 22 Position View larger

Blue Sea 8380 DC Main + 22 Position

Blue Sea Systems

20819

20819

New product

Blue Sea 8380 DC Main + 22 Position

More details

$974.20

3 Items

In Stock

More info

Main + 22 Positions


  • (16) 15A Single Pole Circuit Breakers

  • (1) 100A C-Series Main Circuit Breaker

  • (1) 8028 DC Micro Voltmeter

  • (1) 8250 DC Analog Micro Ammeter



  • White Switches

    Features:
    • All positive, negative and grounding buses installed, fully pre-wired
    • Panels with meters include toggle switch for mounting up to 3 battery banks
    • All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
    • All circuit label positions are backlit on standard panels - No kit required
    • "ON" indicating LEDs installed in all circuit positions
    • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8" aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Panel Labels
    • Over 500 individual labels available
