Lenco 21" x 14" High Performance Trim Tab Kit w/o Switch Kit 12V View larger

Lenco 21" x 14" High Performance Trim Tab Kit w/o Switch Kit 12V

Lenco Marine

31348

31348

New product

Lenco 21" x 14" High Performance Trim Tab Kit w/o Switch Kit 12V

More details

$2,723.03

Out of stock

More info

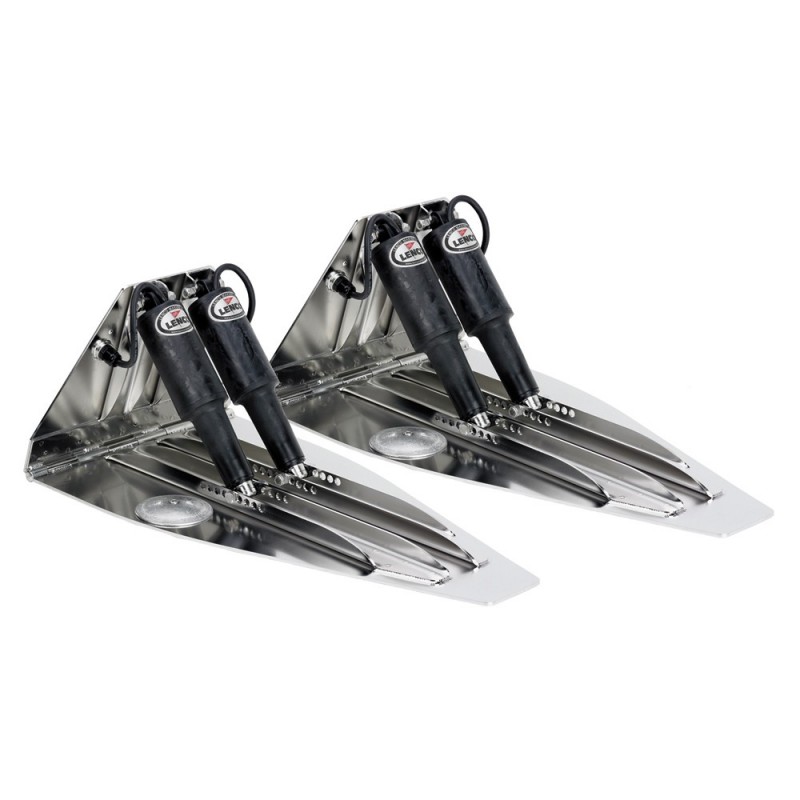

21" x 14" High Performance Trim Tab Kit w/o Switch Kit-12V - Dual Actuator

Lenco HP Single & Dual Actuator Electric Trim Tab Kits feature electro-polished 7 Gauge 304SS Blades & Sacrificial Anodes. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.

Each kit is factory assembled with extreme duty actuators with 3/8" SS bolts, a full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.

Kit Contents:

  • 2 each of stainless steel trim tab planes
  • 4 each of #15056-001 XD extreme duty actuators with 6' lead & Deutsch plugs
  • Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets, and 3.75" sacrificial anodes.

The following to be supplied by customer:

  • Boat mounting hardware supplied by customer
  • Actuator extension harnesses (2 for single actuator application or 4 for dual) will be
    required. To order the lengths of your choice see the Lenco Accessories Section.

Specifications:

  • Suggested Boat Length: 24' to 42'
  • Length of Tab: 21"
  • Width of Tab: 14"
  • Minimum Transom Height: 10.5"
  • Blades: 7 Gauge Stainless Steel
  • Finish: Electro-Polished
  • Switch Kit: Sold Separately
  • Switch Required: 15071-001
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any Boat
  • Actuators: 12-volt
