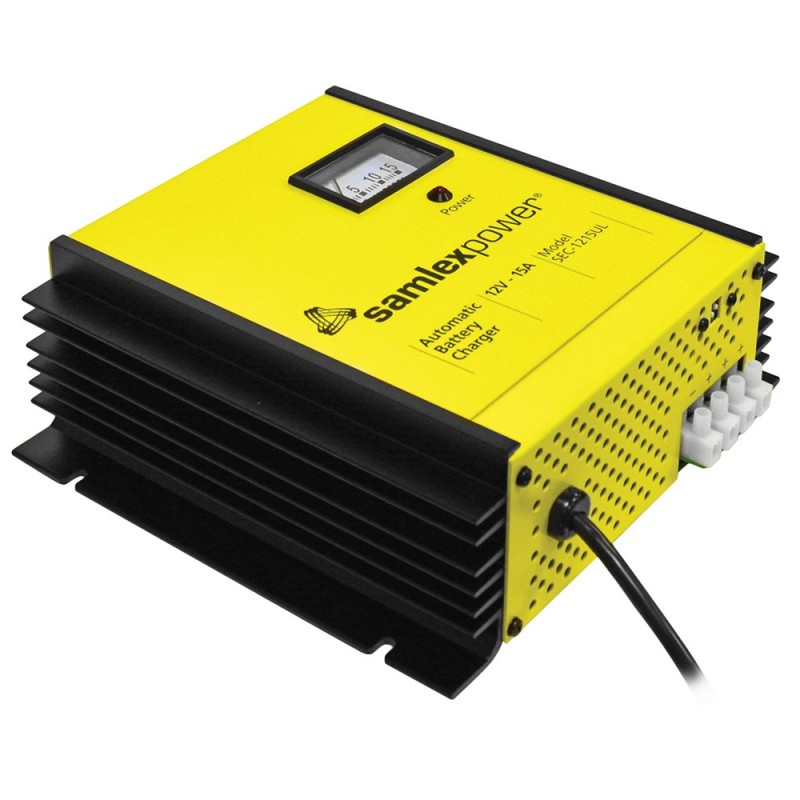

Samlex 15A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs View larger

Samlex 15A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs

Samlex America

67187

67187

New product

Samlex 15A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs

More details

$187.10

2 Items

In Stock

More info

15A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs

This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short-circuit protection. The unit allows charging of up-to 3 separate battery banks.

Features:

  • High efficiency
  • Commercial Grade
  • Lightweight
  • Quiet operation
  • Industry Proven Design - 1000s of units in operation
  • 2 or 3 stage charging (user selectable)
  • 120 or 230 VAC, 50/60 Hz (user selectable)
  • Voltage meter display - Ammeter and LED power status
  • For all types of Lead Acid batteries
  • Charge with a battery load or stand alone
  • Use as a power supply or DC UPS
  • UPC: Universal Protection Circuit - short circuit, overload, reverse battery polarity
  • Charge 3 banks of batteries at once - no isolator necessary

Specifications:

  • Input: 120 VAC 60 Hz or 230 VAC 50 Hz
  • Output: 12 VDC
  • Amps: 15 Amps
  • Weight: 4.4 (lbs)
  • Weight: 1.96 (kg)
  • Dimensions: 8.5 x 8.5 x 3 (in)
  • Dimensions: 21.6 x 21.6 x 7.6 (cm)
  • Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
  • Warranty: 2 Year Limited

Applications:

  • Automotive
  • Recreational vehicles
  • Marine
  • Communications sites
  • Battery back-up systems
