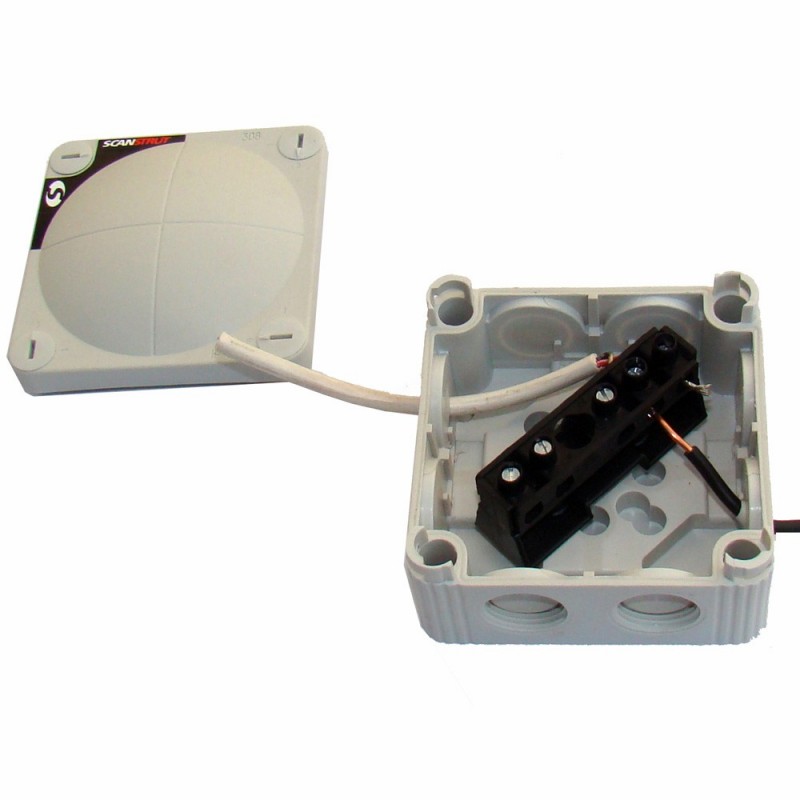

SB-8-5 Junction Box

Scanstrut's SB-8-5 Junction Box is perfect for installations if you need to create a waterproof connection for multiple electrical cables.

Heavy-duty junction box manufactured from marine grade polypropylene and with features 5 screw-down terminals.

Depending on the number of terminations required the terminal blocks can be individually fitted or blocked together. Supplied with 5 modular terminal blocks. Offering 5 terminations.

Cables push fit into the terminals and are secured with a sprung leaf retention system that does not damage the wire. The terminal can be removed for easy fitting of cables.

Features:

  • Provides 5 screw-down terminals.
  • Capacity for up to eight (8) cables to enter the box.
  • Watertight Installation - Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress.
  • Upgradable to IP68 with use of SB-2G Cable Seals (sold separately)

Technical Specifications:

  • Maximum cable size (diameter) - .50" (12 mm)
  • Maximum wire size - 16/1.5 to 11/4
  • Dimensions (L x W x H) - 3.35" x 3.35" x 2" (85 x 85 x 50 mm)
  • Five (5) terminal block w/400 V rating and 32 A
  • Color - Grey
  • Material - Marine grade polypropylene

In the Box:

  • Junction box w/five (5) screw-down terminal block
  • Mounting hardware
  • Installation manual

*Sold as an Individual
